1 HP Multistage CNC Machinery Coolant Pump shaft 253mm (10") 2 impellers 34 Psi TC-1253-4T-6-2

Yu Hseng Electric multistage pump are developed for industrial machine center and applications , especially for machine tools like CNC, Turning, Milling, Drilling, Cutting, Slitting, Grinding etc. operations (Lathing machine drilling machine, lapping machine, Milling machine, pressing machine, stamping machine, tapping machine, punch machine, cooling system, oil cooling, water circulation)

The TC4T Series is vertical multistage pump and developed for machine tools applications like CNC. It is suitable to carry liquid such as water, coolant, light oil and other clean, non-aggressive matters. The performance equivalent to most of major brands (Grundfos, Stair, Warlus  TPHK etc.)

- Brand: YU HSENG
- Model: TC-1253-4T-6-2
- Power: 750 W (1 HP )
- Phase & Voltage Options: 3 Phase & 208V; 220V; 240V; 415V; 440V; 480V
- Discharge Bore: PT  3/4 "  (PT=BSPT=Rc)

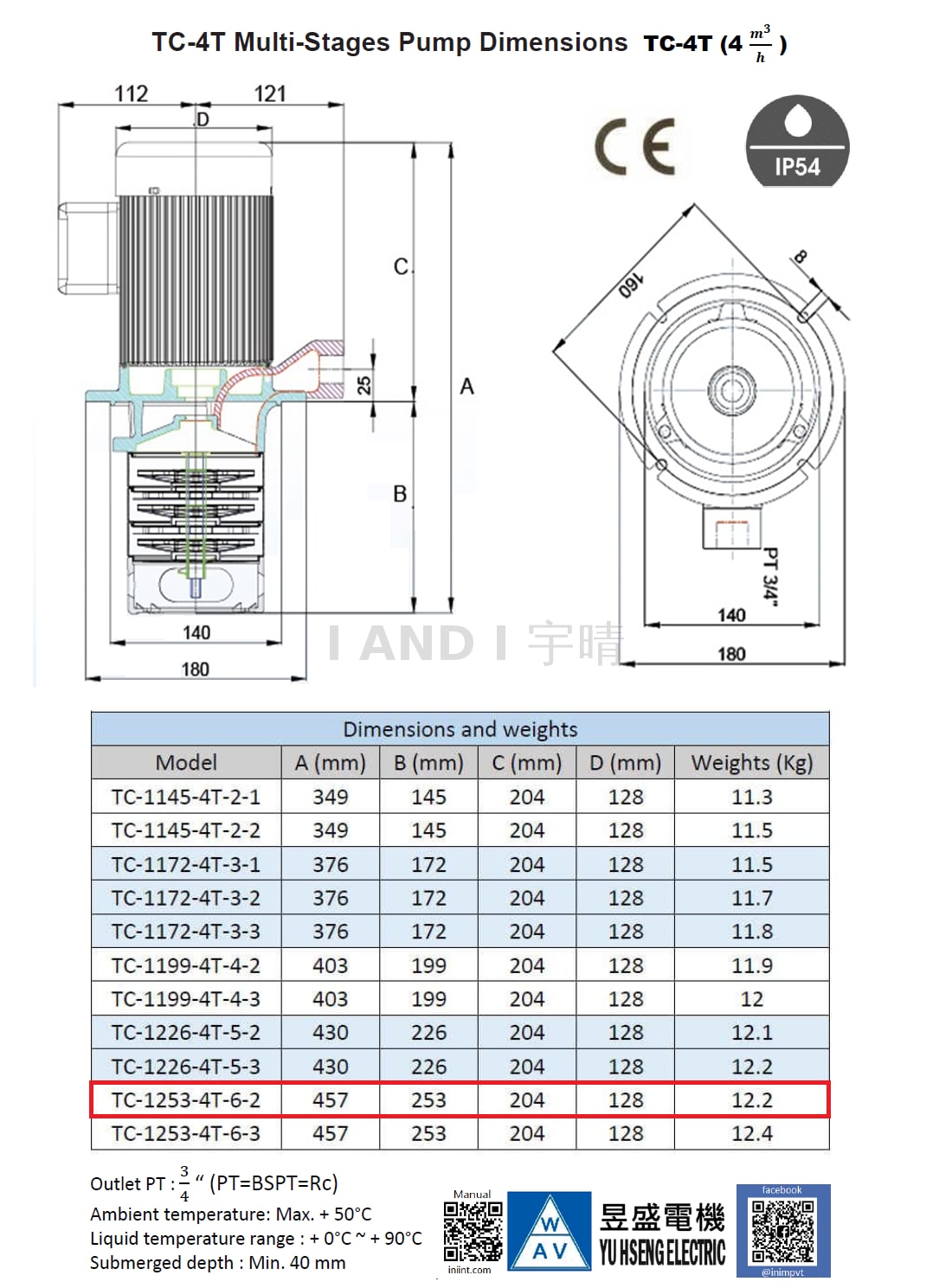

- Length ( flange to bottom): 253mm (10 ")

- 4T= (4 m^3/h )

- Ambient temperature: Max. + 50°C

- Liquid temperature range : + 0°C ~ + 90°C

- Submerged depth : Min. 40 mm

Max Flow Rate in 60 Hz: 38.8 GPM ( 147 L/min )
Max Lift (Head Height) in 60 Hz : 78.1 ft (23.8 M )

Max Pressure in 60 Hz : 34.1 PSI
